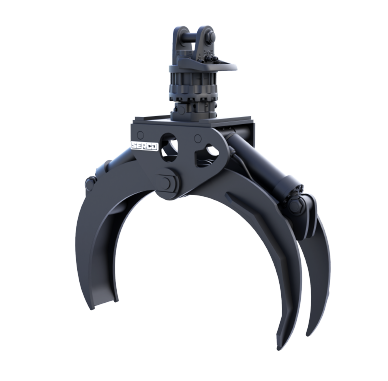

Combination Grapple

| | | | |

-180° 180°

SCG Series

Serco Combination Grapples are designed to fulfill the needs of forestry, logging, pole handling, and mill operations. The Combination Grapples feature wide tines for stability and bypassing arms which are designed for enhanced rolling of logs as well as precise handling of individual logs and utility poles.

Designed for exceptional rolling of logs and utility poles.
Single and Dual Cylinder Options Available.
Continuous Rotation.
1/4 cord, 1/3 cord, and 1/2 cord models available.
Made in the U.S.A.

Get a quote

Download selling sheet

PRODUCT SPECIFICATIONS

Serco Combination Grapples are designed to fulfill the needs of forestry and logging operations. Our Combination Grapples feature bypassing arms with arm profiles that allow for smooth rolling of logs as well as precise handling of individual logs and utility poles. Available in 1/4 cord, 1/3 cord, and 1/2 cord models. The tine is widerthan a standard log grapple to allow a stable load in shortwood.

TECHNICAL SPECIFICATIONS

Model	SCG055
Max Opening in (mm)	52 (1,327)
Min Opening in (mm)	2 (53)
Area Tip-To-Tip ft² (m²)	2.33 (0.22)
Volume In Cord 8ft (m²)	0.15 (0.53)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,375 (233)
Weight lb (kg)	356 (161)
Continous Rotation	Yes
Dealer Reference	5006054

Download Literature

Model	SCG072- 1/4
Max Opening in (mm)	72 (1,835)
Min Opening in (mm)	6 (152)
Area Tip-To-Tip ft² (m²)	4.25 (0.39)
Volume In Cord 8ft (m²)	0.27 (0.98)
Cylinder Size in (mm)	4 (102)
Cylinder Max. Pressure PSI (bar)	4,200 (290)
Weight lb (kg)	960 (435)
Continous Rotation	Yes
Dealer Reference	680978

Download Literature

Model	SCG072- 1/4 LL
Max Opening in (mm)	72 (1,835)
Min Opening in (mm)	6 (152)
Area Tip-To-Tip ft² (m²)	4.25 (0.39)
Volume In Cord 8ft (m²)	0.27 (0.98)
Cylinder Size in (mm)	4 (102)
Cylinder Max. Pressure PSI (bar)	4,200 (290)
Weight lb (kg)	940 (426)
Continous Rotation	Yes
Dealer Reference	681009

Download Literature

Model	SCG072- 1/4 BB
Max Opening in (mm)	72 (1,835)
Min Opening in (mm)	6.5 (164)
Area Tip-To-Tip ft² (m²)	4.25 (0.39)
Volume In Cord 8ft (m²)	0.27 (0.98)
Cylinder Size in (mm)	4 (102)
Cylinder Max. Pressure PSI (bar)	4,200 (290)
Weight lb (kg)	950 (431)
Continous Rotation	Yes
Dealer Reference	5017914
