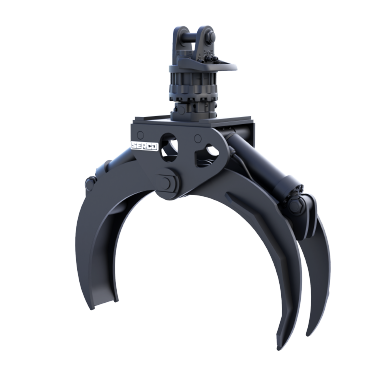

Railroad Grapple

| | | | |

-180° 180°

SRG Series

Serco Railroad Grapples are designed to handle tie bundles, individual ties, rail sections, and other materials. They come standard with load lock cylinders for increased safety in the event of a hydraulic hose failure. Many of our rail grapples are approved for Class 1 usage.

Load Lock Cylinders Standard.
Continuous Rotation.
1/4 cord , 1/3 cord, 22", and 55" models available.
Made in the U.S.A.

Get a quote

Download selling sheet

PRODUCT SPECIFICATIONS

Serco Railroad Grapples are designed to meet the specific needs of the rail industry. With models specifically designed for handling tie bundles, individual ties, rail sections, and other material Serco has a grapple to fit your needs. Available in 1/4 cord, 1/3 cord, 22", and 55" models.

TECHNICAL SPECIFICATIONS

Model	SRG056- 1/3 RR LL
Max Opening in (mm)	56 (1,417)
Min Opening in (mm)	8.5 (216)
Area Tip-To-Tip ft² (m²)	4.69 (0.44)
Volume In Cord 8ft (m²)	0.29 (1.06)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	4,650 (321)
Weight lb (kg)	834 (378)
Continous Rotation	Yes
Dealer Reference	5006139

Download Literature

Model	SRG069- 1/3 BB RR LL
Max Opening in (mm)	69.5 (1,765)
Min Opening in (mm)	31 (790)
Area Tip-To-Tip ft² (m²)	4.72 (0.44)
Volume In Cord 8ft (m²)	0.29 (1.06)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	4,650 (321)
Weight lb (kg)	938 (425)
Continous Rotation	Yes
Dealer Reference	5007668

Download Literature

Model	SRG078- 1/3 RR LL
Max Opening in (mm)	78 (1,980)
Min Opening in (mm)	12 (295)
Area Tip-To-Tip ft² (m²)	4.97 (0.46)
Volume In Cord 8ft (m²)	0.31 (1.13)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	4,650 (321)
Weight lb (kg)	935 (424)
Continous Rotation	Yes
Dealer Reference	5018373

Download Literature

Model	SRG053- 1/4 RR LL
Max Opening in (mm)	53.25 (1,326)
Min Opening in (mm)	8 (205)
Area Tip-To-Tip ft² (m²)	3.64 (0.34)
Volume In Cord 8ft (m²)	0.23 (0.82)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	4,650 (321)
Weight lb (kg)	766 (347)
Continous Rotation	Yes
Dealer Reference	5013329

Download Literature

Model	SRG055- 1/4 SBC RR LL
Max Opening in (mm)	55 (1,396)
Min Opening in (mm)	9 (221)
Area Tip-To-Tip ft² (m²)	3.68 (0.34)
Volume In Cord 8ft (m²)	0.23 (0.83)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	4,650 (321)
Weight lb (kg)	1,090 (494)
Dealer Reference	Yes
Continous Rotation	5006141

Download Literature

Model	SRG054- 1/4 SBC RR LL
Max Opening in (mm)	54.75 (1,391)
Min Opening in (mm)	8.5 (211)
Area Tip-To-Tip ft² (m²)	3.55 (0.33)
Volume In Cord 8ft (m²)	0.22 (0.8)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	4,650 (321)
Weight lb (kg)	1,026 (465)
Continous Rotation	Yes
Dealer Reference	5011786
